繊維光学の回転式接合箇所
>
|
| 起源の場所 | 中国 |
| ブランド名 | CENO |
| 証明 | CE,RoHS,ISO9001,UL |
| モデル番号 | ECN000-05P1-04S-01EG-01F |
Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring

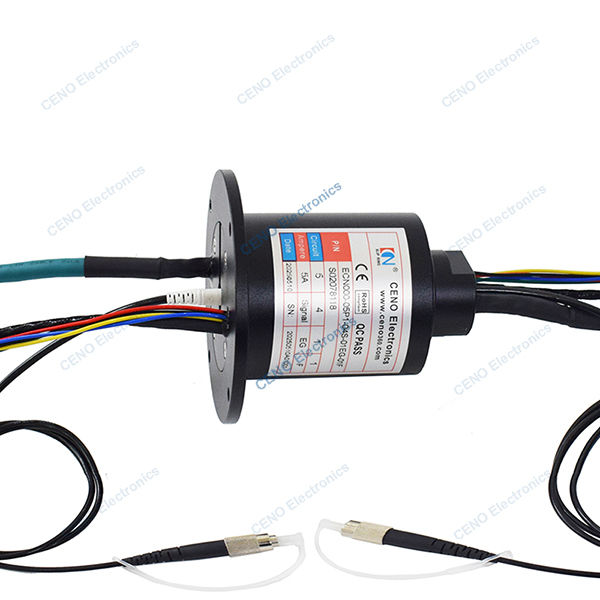

ECN000-05P1-04S-01EG-01F is CENO Integrate electric power signal and fiber optic rotary joint slip ring, that is equipped in the machine working in low temperature -40°C~+50°C. Slip ring is an electro-mechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. CENO integrate fiber optic rotary joint slip rings are developed for rugged environment and demanding requirements, and performing in aerospace and defense application.
Features
Applications
Optional
Specification
ECN000-05P1-04S-01EG-01F | Specification |
| Current & Circuits | 5 circuits * 5A; 4circuits * signal; 1 * Ethernet Signal; 1 * Fiber optic |
| Rating Voltage | 0 ~ 220 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@300VDC |
| Contact resistance wave | ≤ 10mΩ |
| Working temperature | -40°C~+50°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~300rpm |
| Outer diameter | Ø56mm |
| Contact material | Precious Metal |
| Housing material | Aluminum Alloy |
| Lead wire length | Rotor: 1000mm; Stator: 1000mm |
| Installation way | Flange installation |
| Fiber Optic | |
| Wave length | 1310/1550 |
| Insert loss | ＜2dB |
| Return loss | ＜30dB |
| Insertion loss deviation | ＜±0.5dB |
| Connector | FC |
| Cable length | Stator: 700±10mm; Rotor: 1100±15mm |
Outline drawing
Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
