| Place of Origin | China |
| ブランド名 | CENO |
| 証明 | CE,RoHS,ISO9001,UL |
| Model Number | ACN-16P1-54S-03HD |

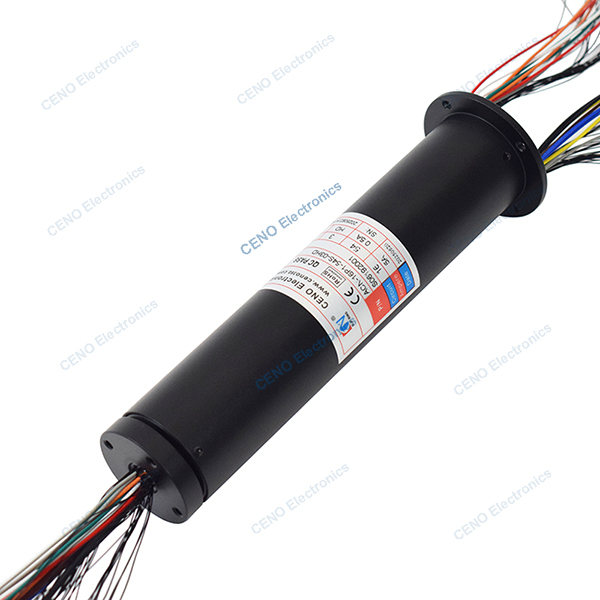

High Definition HD-SDI Signal Slip Ring with 73 circuits Electric Power
ACN-16P1-54S-03HD is CENO HD-SDI signal slip ring combine circuits electric power, signal and 3 groups HD-SDI signal for security monitoring. Goal of HD-SDI signal slip ring is high quality, stable, long-distance video signal transmission in professional broadcast and film and television production environments. It is designed to connect professional equipment such as cameras, switchers, recorders, matrices, monitors, etc. Requiring extremely high reliability and anti-interference capability.
Features
Applications
Optional
Specification
|
ACN-16P1-54S-03HD |
Specification |
| Current & Circuits | 16 * 5A; 54 * 0.5A; 3 Group * HD-SDI |
| Rating Voltage | 0 ~ 24 VAC/VDC |
| Dielectric strength | ≥100VAC@50Hz |
| Isolation resistance | ≥10MΩ@100VDC |
| Contact resistance wave | ≤ 5mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP00 |
| Operating speed | 0~250rpm |
| Outer diameter | Ø40mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Lead wire size & length | As customized |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
