無線周波数のロータリージョイント
>
|
|
| 起源の場所 | 中国 |
| ブランド名 | CENO |
| 証明 | ISO9001,CE,RoHS,UL |
| モデル番号 | ECN000-02P3-04P2-16P1-01EG-03R |
Integrate Electric power Ethernet & RF Slip Ring with Radio Frequency Rotary Union

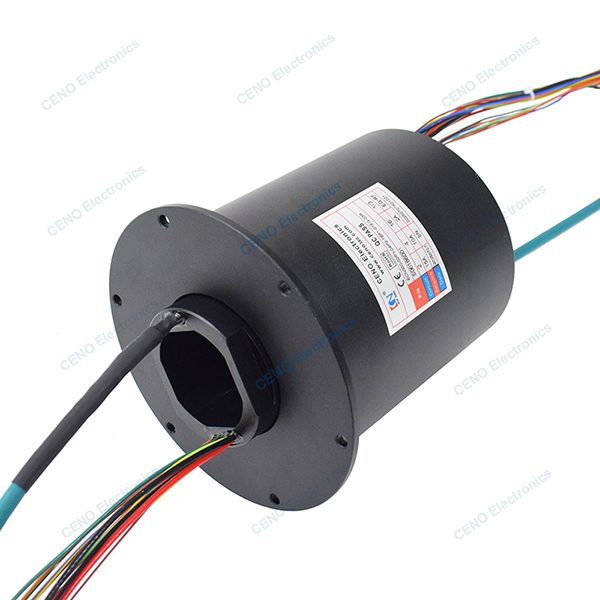

ECN000-02P3-04P2-16P1-01EG-03R is CENO integrate slip ring which combine circuits electric power, Ethernet signal and 3 channels RF signal. RF slip rings are specially designed for transmitting low or high-frequency RF signals. They can be divided into single-channel and multi-channel RF slip rings. They can also be integrated with electrical signals and other communication signals to meet all transmission needs of modern complex systems, For more information please contact us.
Specification
| ECN000-02P3-04P2-16P1-01EG-03R Specification | |||
| Current & Circuits | 2 * 15A; 4 * 10A; 16 * 2A; 1 * 1000M Ethernet; 3 * RF | ||
| Rating Voltage | 0 ~ 220 VAC/VDC | ||
| Dielectric strength | ≥1000VAC@50Hz; ≥300VAC@50Hz | ||
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@300VDC | ||
| Contact resistance wave | ≤ 30mΩ | ||
| Working temperature | -20°C~+60°C | ||
| Working humidity | 60%RH | ||
| IP protection grade | IP51 | ||
| Operating speed | 0~50rpm | ||
| Outer diameter | Ø119mm | ||
| Contact material | Precious metal | ||
| Housing material | Aluminium Alloy | ||
| Lead wire length | As customized | ||
| Rotation way | Flange installation | ||
| Radio frequency | Parameters | ||
| Channel1 | Channel 2 | Channel 3 | |
| Connector type | SMA-f (50Ω) | SMA-f (50Ω) | SMA-f (50Ω) |
| Frequency range | DC to 18GHz | DC to 18GHz | DC to 18GHz |
| VSWR (max) |
1.4@DC-8GHz 1.8@8-18GHz |
2@DC-4GHz 3@4-8GHz 3.5@8-12GHz 4.5@12-18GHz |
2@DC-4GHz 3@4-8GHz 3.5@8-12GHz 4.5@12-18GHz |
| Insert loss (max) |
0.5dB@DC-8GHz 1.1dB@8-18GHz |
0.75dB@DC-4GHz 1.5dB@4-8GHz 2.5dB@8-12GHz 3dB@12-18GHz |
0.75dB@DC-4GHz 1.5dB@4-8GHz 2.5dB@8-12GHz 3dB@12-18GHz |
| Average power | 50W@1Ghz | 30W@1Ghz | 30W@1Ghz |
| Isolation | 50dB | 50dB | 50dB |
