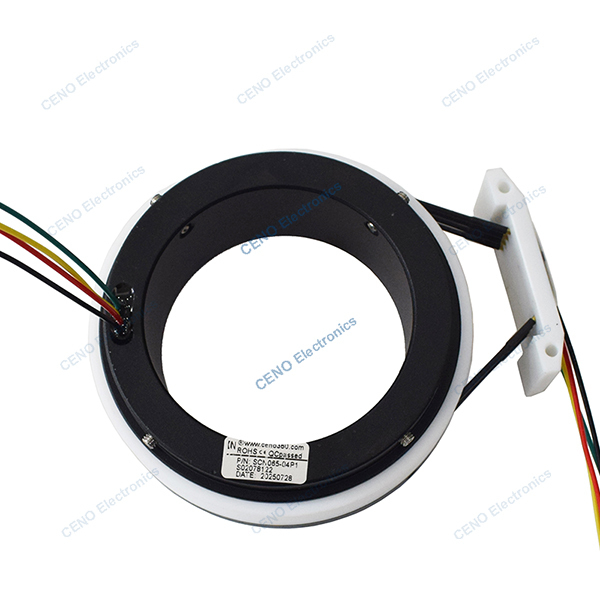

Separate Slip Ring with Two half style and Electric Power Rotary Joint
  • Separate Slip Ring with Two half style and Electric Power Rotary Joint
  • Separate Slip Ring with Two half style and Electric Power Rotary Joint

Separate Slip Ring with Two half style and Electric Power Rotary Joint

起源の場所 中国
ブランド名 CENO
証明 ISO9001
モデル番号 SCN065-04P1
製品詳細
回路番号:
4回のサーキット * 3a
電圧:
0〜380 VAC/VDC
誘電強度:
≥1000Vac@50Hz
分離抵抗:
≥500mΩ@500VDC
作業温度:
-20°C~+80°C
動作湿度:
60 %RH
IP保護グレード:
IP00
動作速度:
0〜300rpm
内径:
Ø65mm
外径:
Ø96mm
鉛線の長さと大きさ:
カスタマイズ
支払いと送料の条件
最小注文数量
1pcs
価格
交渉可能
パッケージの詳細
Crate/Asの要求
受渡し時間
2週間
支払条件
T/T、PayPal、Western Union
供給の能力
1か月あたり1000pcs
製品説明

Separate Slip Ring with Two half style and Electric Power Rotary Joint

SCN065-04P1 is CENO separate slip ring with 4 circuits electric power and optional for different require. A separate slip ring is a slip ring device in which the rotor and stator can be physically separated. When the work is completed or maintenance is required, the two can be easily separated. Its rotor and stator are not permanently fixed together, but like a "plug" and "socket", they can be connected and disconnected at any time as needed. For more information about how CENO slip ring can fit your application please contact us.




Specification

SCN065-04P1

Specification
Current & Circuits 4 circuits * 3A
Rating Voltage 0 ~ 380 VAC/VDC
Dielectric strength ≥1000VAC@50Hz
Isolation resistance ≥500MΩ@500VDC
Contact resistance wave ≤ 30mΩ
Working temperature -20°C~+80°C
Working humidity 60 %RH
IP protection grade IP00
Operating speed 0~300rpm
Inner diameter Ø65mm
Outer diameter Ø96mm
Contact material Precious Metal
Housing material Aluminium Alloy
Lead wire size As customized
Lead wire length As customized







Features

  • High reliability, design flexibility
  • Avoids cable entanglement & supports multi media transmission
  • Through hole 3~980mm optional
  • Install easy & Free maintenance



Applications

  • Machine tools
  • Turntable testing machine
  • Packing equipment
  • Roller test benches
  • Radar masts



Optional

  • Circuit, Voltage, Current
  • Signals and data
  • Contact / Housing Materials
  • Inner / outer diameter
  • Working speed & temperature



Outline drawing

Separate Slip Ring with Two half style and Electric Power Rotary Joint 0













Why with CENO



CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Separate Slip Ring with Two half style and Electric Power Rotary Joint 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Separate Slip Ring with Two half style and Electric Power Rotary Joint 2



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
