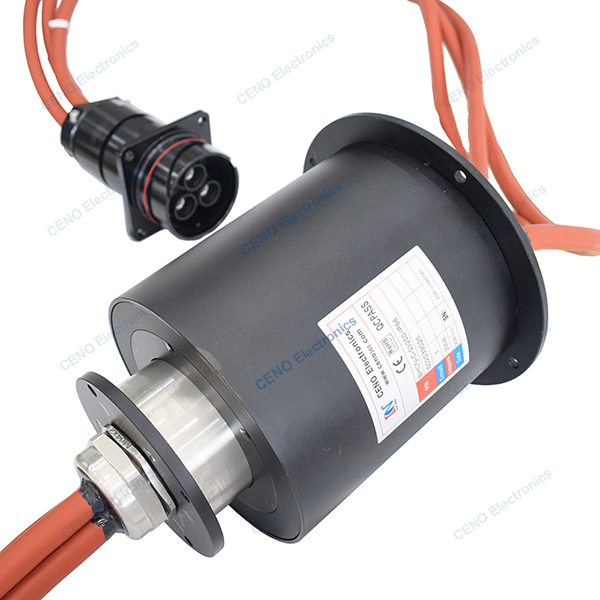

Low temperature high current sliip ring with IP66 water proof protection grade
  • Low temperature high current sliip ring with IP66 water proof protection grade
  • Low temperature high current sliip ring with IP66 water proof protection grade
  • Low temperature high current sliip ring with IP66 water proof protection grade
  • Low temperature high current sliip ring with IP66 water proof protection grade
  • Low temperature high current sliip ring with IP66 water proof protection grade
Low temperature high current sliip ring with IP66 water proof protection grade

Low temperature high current sliip ring with IP66 water proof protection grade

起源の場所 中国
ブランド名 CENO
証明 CE,RoHS,UL,ISO9001
モデル番号 BHCN-C-03200-IP66
製品詳細
現在およびサーキット:
3*200A
定格電圧:
AC/DC0～2000V
誘電強度:
≥ 5000VAC@50Hz
分離抵抗:
≥1000MΩ@1000VDC
接触抵抗:
≤30mΩ ((50rpm)
作業温度 貯蔵温度:
-40°C〜+60°C
動作湿度:
60％RH
IP保護グレード:
IP66
動作速度:
0〜10 rpm
外径:
Ø190mm
回転方向:
フランジのインストール
リードワイヤの長さ:
カスタマイズされています
支払いと送料の条件
最小注文数量
1個
価格
交渉可能
パッケージの詳細
Crate/Asの要求
受渡し時間
2週間
支払条件
L/C、T/T、PAYPAL、ウェスタン・ユニオン
製品説明

  Low temperature high current sliip ring with IP66 water proof protection grade



BHCN-C-03200-IP66 is CENO high current slip ring with 200A current and protection grade IP66 for equipment suitable for temperature from -40°C~+60°C. High current slip ring refer to a slip ring can bear and transfer current over tens amperes or higher commonly. Often equipped in industry equipment, such as electric motors, welding machines, and large lighting systems where require hundreds to thousands of amperes of current to drive them. For more information please contact us.





Features

  • High current 200A and option
  • High protection IP66 be up to IP68
  • High quality material ensure suit for low temperature from -40°C~+60°C
  • Install easy & Free maintenance



Applications

  • Automatic machine
  • Electric Motors
  • Large lighting system
  • Welding machines
  • Medical equipment



Optional

  • Circuit, Voltage, Current
  • Signals and data
  • Contact / Housing Materials
  • Protection grade
  • Working speed & temperature




Specification

BHCN-C-03200-IP66                              Specification
Current & Circuits 3 circuits * 200A
Rating Voltage 0 ~ 2000 VAC/VDC
Dielectric strength ≥5000VAC@50Hz
Isolation resistance ≥1000MΩ@1000VDC
Contact resistance wave ≤ 30mΩ
Working temperature -40°C~+60°C
Working humidity 60 %RH
IP protection grade IP66
Operating speed 0~10rpm
Outer diameter Ø190mm
Contact material Precious Metal / Gold to gold
Housing material Aluminium Alloy + Stainless steel
Rotation way Flange installation
Lead wire length As customized



Outline Drawing
Low temperature high current sliip ring with IP66 water proof protection grade 0




More information about ceno marine carbon brush slip rings

CENO Electronics has been designing and manufacturing slip rings for various industries for about 20 years. Our Carbon Brush Slip Ring is specially designed for marine and offshore applications, making sure your equipment runs smoothly and efficiently.
Our Carbon Brush Slip Ring has 7 circuits for 200A (400V), 1 circuit for PE, 6 circuits for 63A (400V), and 40 circuits for 5A signal. This product stands out with its large current capacity, which is perfect for marine and offshore applications. The high-quality materials used in construction ensure that our slip rings can withstand harsh and corrosive environments.
Our Carbon Brush Slip Rings also feature low electrical noise and minimal contact resistance, which can maintain the integrity of your signal transmission and power delivery. With CENO Electronics, you can trust that our slip rings are reliable and efficient, ensuring that your machinery operates safely and efficiently.
In conclusion, CENO Electronics has developed a Carbon Brush Slip Ring that is specifically designed to meet the needs of marine and offshore applications. With its large current capacity, low electrical noise, and high-quality construction materials, it is an excellent choice for any industrial application. Trust CENO Electronics for all your slip ring needs.





Application pictures

Low temperature high current sliip ring with IP66 water proof protection grade 1Low temperature high current sliip ring with IP66 water proof protection grade 2Low temperature high current sliip ring with IP66 water proof protection grade 3


Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.





Certification

ISO9001,CE,RoHS,UL,Explosion-proof



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
