パンケーキ スリップ リング
>
|
|
| 起源の場所 | 中国 |
| ブランド名 | CENO |
| 証明 | CE,RoHS,UL,ISO9001 |
| モデル番号 | PCN210-03P2-08S |

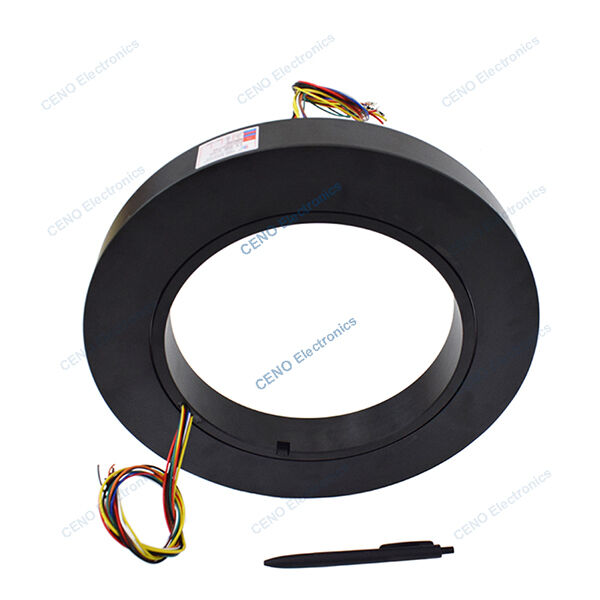

Electric Power Pancake Slip Ring with Through Hole 210mm and Thickness 40mm
PCN210-03P2-08S is CENO pancake slip ring with through hole 210mmand 40mm thickness that is available for custom for different application. Pancake slip ring is as another form of though hole slip rings. CENO pancake slip rings are designed for some equipment which vertical space is limited while horizontal space is less restrictive.This type slip ring provides ultra-thin thickness for special limited installation space. For more information about how CENO pancake slip ring can fit your application please contact us.
Features
Applications
Optional
Specification
| PCN210-03P2-08S Specification | |
| Current & Circuits | 3 * 10A; 8 * 5A |
| Rating Voltage | 0 ~ 220 VAC/VDC |
| Dielectric strength | ≥500VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@300VDC |
| Contact resistance wave | ≤ 70mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~12rpm |
| Inner diameter | Ø210mm |
| Outer diameter | Ø320mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Lead wire size & length | As customized |
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
