| 起源の場所 | 中国 |
| ブランド名 | CENO |
| 証明 | ISO9001,CE,RoHS |
| モデル番号 | QCN01M6-06P-06S |

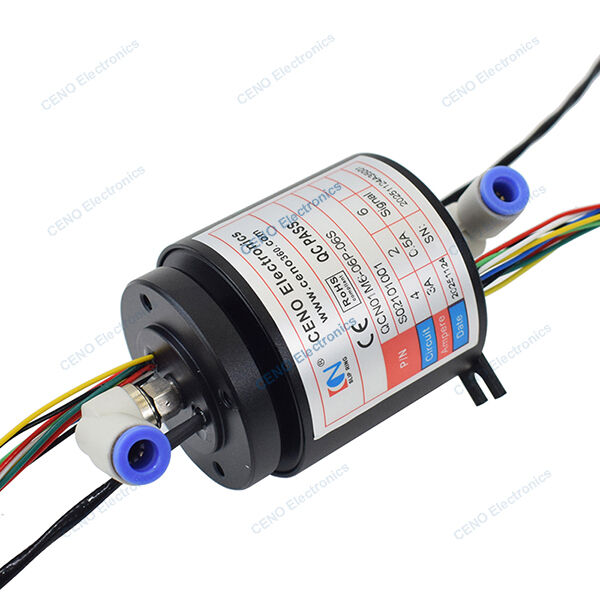

Integrate Power io signal and Pneumatic Rotary Union for Industry System
QCN01M6-06P-06S is CENO integrate slip ring which combine circuits electric power and 1 channel air with max pressure 1.0MPa. Integrated gas-liquid slip rings are precision electro mechanical components that integrate gas, liquid, and electrical power/signal within one rotating mechanism. Their core function is to simultaneously achieve tangle-free transfer of gaseous and liquid media and continuous transmission of electrical signals/power between the rotating and stationary parts.
Features
Applications
OptionalI
Specification
| QCN01M6-06P-06S Specification | |
| Current & Circuits | 4 * 3A; 2 * 0.5A; 4 * io signal; 1 * 485 signal |
| Rating Voltage | 0 ~ 3000 VAC/VDC |
| Dielectric strength | ≥300VAC@50Hz |
| Isolation resistance | ≥100MΩ@100VDC |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~300rpm |
| Outer diameter | Ø56mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Lead wire size & length | As customized |
| Rotary Union | |
| Channels | 1 channel * Air ( M6 & Tube 6mm ) |
| Pressure max | 1.0MPa |
Outline Drawing
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
