イーサネット スリップ リング
>
|
|
| 起源の場所 | 中国 |
| ブランド名 | CENO |
| 証明 | CE,RoHS,ISO9001,UL |
| モデル番号 | ECN012-06P2-01EM-A |

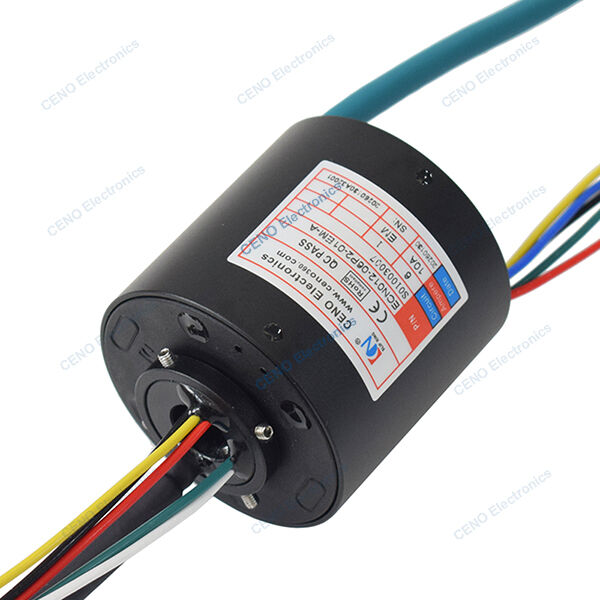

Ethernet Slip Ring with Through Hole Structure and combine Electric Power
ECN012-06P2-01EM-A is CENO Through hole Slip Ring combined Electric Power and Ethernet Signal for Industry System. Industrial Ethernet refers to Ethernet technology applied within the field of industrial control. When designing Industrial Ethernet products, manufacturers must ensure that the selection of materials, structural durability, suitability for purpose, real-time performance, interoperability, reliability, noise immunity, and intrinsic safety all meet the specific requirements of industrial environments. For more information about how CENO slip ring can fit your application please contact us.
Features
Through hole 3mm-980mm optional
Circuits 1 - 300 circuits are option
Stable transmitting, no string code, can be integrate various signal /data
Install easy & Free maintenance
Applications
Automatic machine
Turntable testing machine
Packing equipment
Filling machinery
Medical equipment
Optional
Circuit, Voltage, Current
Signals and data
Contact / Housing Materials
Protection grade
Working speed & temperature
Specification
| ECN012-06P2-01EM-A Specification | |
| Current & Circuits | 6 * 10A; 1 * Ethernet |
| Rating Voltage | 0 ~ 380 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@100VDC |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~300rpm |
| Inner diameter | Ø12.7mm |
| Outer diameter | Ø56mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Lead wire size & length |
As customized |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
