Integrated Power Ethernet RS485 and Pneumatic Rotary Union for Industrial System
  • Integrated Power Ethernet RS485 and Pneumatic Rotary Union for Industrial System
  • Integrated Power Ethernet RS485 and Pneumatic Rotary Union for Industrial System
  • Integrated Power Ethernet RS485 and Pneumatic Rotary Union for Industrial System
  • Integrated Power Ethernet RS485 and Pneumatic Rotary Union for Industrial System
Integrated Power Ethernet RS485 and Pneumatic Rotary Union for Industrial System

Integrated Power Ethernet RS485 and Pneumatic Rotary Union for Industrial System

起源の場所 中国
ブランド名 CENO
証明 ISO9001,CE,RoHS
モデル番号 QCNHY0104-0650-06S-03EG-B
製品詳細
電流と回路:
6*50A; 4 * 信号; 1 * RS485 信号; 3 * 1000Mイーサネット
定格電圧:
0~220VAC/VDC
絶縁耐力:
≥1000Vac@50Hz; ≥300Vac@50Hz
絶縁抵抗:
≥500MΩ@500VDC;≥100MΩ@100VDC
接触抵抗:
30mΩ (50rpm)
接点材質:
金への金
ハウジング材質:
アルミニウム合金
使用温度:
-20℃～+60℃
使用湿度:
0~ 60%
知的財産保護グレード:
IP51
動作速度:
0〜300rpm
外径:
Ø105mm
チャンネル:
1つのチャネル*空気
最高圧力:
1.0 MPa
支払いと送料の条件
最小注文数量
1個
価格
交渉可能
パッケージの詳細
カートン
受渡し時間
2週間
支払条件
T/T、ペイパル、ウェスタンユニオン
供給の能力
1ヶ月あたり1000個
製品説明

Integrated Power Ethernet RS485 and Pneumatic Rotary Union for Industrial System


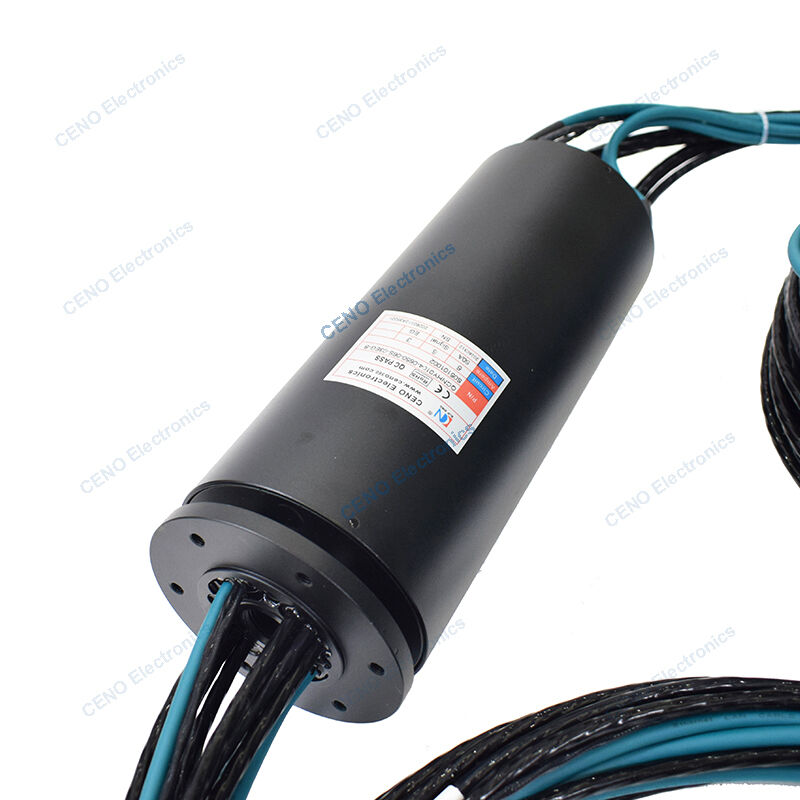

QCNHY0104-0650-06S-03EG-B is integrate slip ring with Power, RS485, Ethernet Signal and 1 channel Air Rotary Union. Electric slip ring and pneumatic or hydraulic rotary unions combined slip ring is designed for some special applications that require both electric ring and pneumatic or hydraulic rotary unions. CENO takes its own technical advantages to developed this kind of slip ring, which is more convenient for users in installation and operation. For more information please contact us.





Features

u Different sealing forms be selected according to different applications

u Stable performance, long life

u The electric slip ring part can integrated current and various signals


Applications

u Chemical & pharmaceutical

u Food processing

u Laser cutting machinery

u Filling machinery

u Medical equipment


Optional

u Circuit, Voltage, Current

u Channels & air pressure

u Contact / Housing Materials

u Protection grade

u Working speed & temperature




Specification

QCNHY0104-0650-06S-03EG-B                           Specification

Current & Circuits

6 * 50A; 4 * Signal; 1 * RS485 Signal; 3 * 1000M Ethernet

Rating Voltage

0 ~ 220 VAC/VDC

Dielectric strength

≥1000VAC@50Hz; ≥300VAC@50Hz

Isolation resistance

≥500MΩ@500VDC;≥100MΩ@100VDC

Contact resistance wave

≤ 30mΩ

Working temperature

-20°C~+60°C

Working humidity

60 %RH

IP protection grade

IP51

Operating speed

0~100rpm

Outer diameter

Ø105mm

Contact material

Gold to gold

Housing material

Aluminium Alloy

Rotary Union

Parameters

Channels

1 * Air

Pressure Max

1.0MPa




Outline Drawing

Integrated Power Ethernet RS485 and Pneumatic Rotary Union for Industrial System 0





Remark

Integrated slip rings are a must-have for machinery that requires both electric power and pneumatic or hydraulic transmission. These slip rings consist of a pneumatic rotary union and a rotary signal joint, which combine to give you 1 channel for air and 50 circuits for a signal collector.

The benefits of an integrated slip ring are many. First off, it simplifies the wiring and installation process for the end user. With just one assembly, they get the best of both worlds. Instead of having to install separate slip rings for power and transmission, they can now rely on a single integrated slip ring. This not only saves time but also reduces the complexity of the machine as a whole.

One other benefit is that an integrated slip ring helps reduce the number of points of potential failure. Instead of having to deal with multiple components, only one integrated slip ring is needed. This means fewer potential points of failure, which in turn means a more robust and reliable machine.

Another advantage of an integrated slip ring is that it offers enhanced operational flexibility. With one assembly, users can rotate and transmit simultaneously without any loss of signal or pressure. This is especially useful in applications where the machine is required to rotate while at the same time delivering air or fluid.

In conclusion, integrated slip rings provide machinery designers and operators with a reliable, easy to install, and versatile solution for transmission coupled with power requirements. With a single assembly combining air and signal collector channels, integrated slip rings are a convenient and efficient option for any machine application where reliability and flexibility are a top priority.




Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.



FAQ


1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.


2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.


3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.


4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.


5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.




Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
