| Place of Origin | China |
| ブランド名 | CENO |
| 証明 | CE,RoHS,ISO9001,UL |
| Model Number | BCN-02P1-08S-01HD-A |

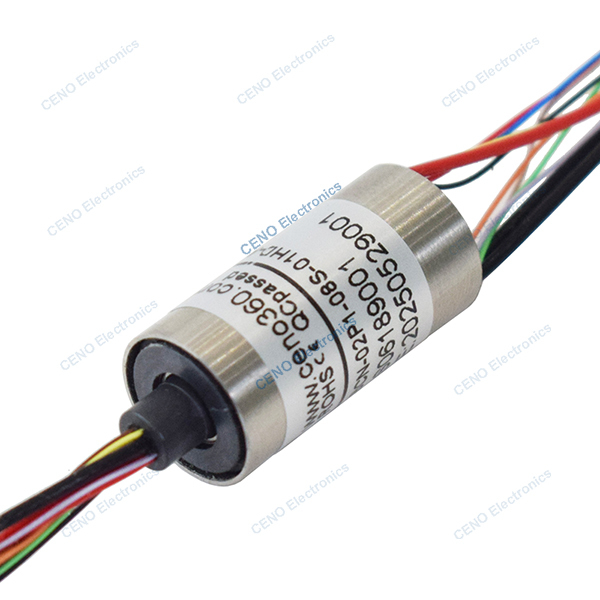

Small Capsule High Definite Slip Ring With HDMI Video Signal for drone
BCN-02P1-08S-01HD-A is CENO small Capsule Slip Ring with circuits signal and high definition video for high definition head. There are two types HD slip ring in CENO including SDI HD and HDMI, which can transmit electric power, signals, HD video signals and high-seep digital signals at the same time, meeting EMC electromagnetic compatibility requirements. CENO high-definition slip rings use the leading domestic high technology and have the advantages of stable transmission. For more information please contact us.
Features
Applications
Optional
Specification
|
BCN-02P1-08S-01HD-A |
Specification |
| Current & Circuits | 2 * 2A; 8 * Signal; 1 * High-definition video |
| Rating Voltage | 0 ~240VAC/VDC |
| Dielectric strength | ≥100VAC@50Hz |
| Isolation resistance | ≥100MΩ@220VDC |
| Contact resistance wave | ≤ 10mΩ |
| Working temperature | -20°C~+80°C |
| Working humidity | 95 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~200rpm |
| Outer diameter | Ø12mm |
| Contact material | Precious metal |
| Housing material | Aluminium Alloy |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
