| 起源の場所 | 中国 |
| ブランド名 | CENO |
| 証明 | CE,RoHS,ISO9001,UL |
| モデル番号 | BCN16B-30-01HD |

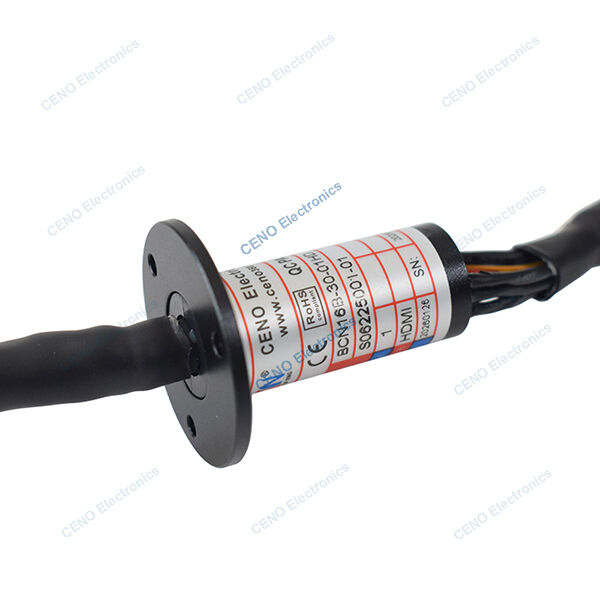

HDMI Capsule Slip Ring combined Electric Power Ethernet and USB signals
BCN16B-30-01HD is CENO Capsule Slip Ring combined Electric Power, Ethernet, USB and 1 channel HDMI signal. Capsule slip ring are often offered in a compact size with flange like small slip ring, used for electrical power transmission, data transfer between a stationary and a rotating part. They are easily installed and widely used in small and medium-sized equipment, such as speed dome camera, intelligent toys, stage lights and drones, etc. For more information please contact us.
Features
Applications
Optional
Specification
| BCN16B-30-01HD Specification | |
| Current & Circuits | 2 circuits * 12.5A; 1 * 1000M Ethernet; 1 * USB2.0 Signal; 1 * HDMI Signal |
| Rating Voltage | 0 ~24 VAC/VDC |
| Dielectric strength | ≥300VAC@50Hz |
| Isolation resistance | ≥100MΩ@300VDC |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP52 |
| Operating speed | 0~300rpm |
| Outer diameter | Ø16mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Lead wire size & length | Customized |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
